welded wire mesh from China manufacturer - Wuqiang Xintai Fiberglass Products Co., Ltd

Price:	1.0~5.0 USD
Payment Terms:	T/T
Special Groups:	welded wire mesh (1)
Place of Origin:	Hebei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: XT003

Production Capacity: 100000m2/month

Delivery Date: within 20 days after receiv...

Type: Welded

Brand Name: XT

material: low carbon steel

width: 0.5-1.2m

hole shape: square

wire dia: 1.0-3.0mm

function: fence

Means of Transport: Ocean

Packing: moisture proof paper inside...

Application: Others

Material: Others

Mesh Size: width:0.5-1.2m length:30m o...

feature: acid,alkali and corrosion r...

length: 50m or as your demand

open: 1/4

surface treatment: pvc or galvanized

certificate: ISO9001:2008

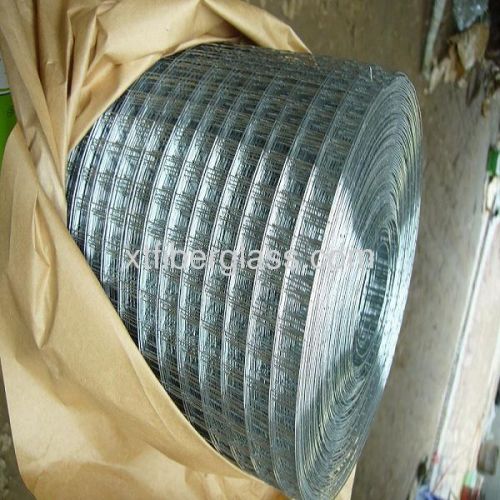

welded wire mesh
1.material:low carbon steel
2.feature:high tensile strength
3.width:0.5-1.2m
4.length:50m or as your demand

welded wire mesh

Wire Mesh serves as guards in buildings and factories, as animal enclosure and wire mesh fences in agriculture; welded wire mesh also serves in horticulture industry as guards for trees and plants

1.Materials: Gal. iron wire, stainless steel wire, PVC coated wire

2.Patterns:

1).hot-dip galvanized before or after welding wire mesh

2).electric-galvanised before or after welding wire mesh

3.Characters: strong welded points and bright luster .The mesh doesn't come loose even if cut in parts or being exerted force on parts .Compared with general iron wire ,the products are better in respects of anti-corrosive and anti-rust .

4.Usage: They are widely used in industry, agriculture, construction, transport and mining .Such as machine protection cover, ranch fender, garden fence, window protection fender, passage fender, fowl cage, egg basket, foodstuffs basket, etc.

We can produce welded wire mesh with following specifications. Custom orders for different width and length are also welcome.

Welded Wire Mesh Processing

Hot dipped galvanizing after weaving
Weaving with hot dipped galvanized iron wire
Electric galvanizing after weaving
Weaving with electric galvanized iron wire
PVC coated welded wire mesh

Specification List of Welded Wire Mesh
Opening		Wire Diameter
In inch	In metric unit(mm)	Wire Diameter
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	10.6mm x 10.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21,
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16
Technical Note: 1,Standard roll length: 30m;width: 0.5m to 1.8m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request.

Galvanized Fencing Mesh
Opening		Wire Diameter
In inch	In metric unit(mm)	Wire Diameter
2" x 3"	50mm x 75mm	2.0mm,2.5mm,1.65mm
3" x 3"	75mm x 75mm	2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2" x 4"	50mm x 100mm	2.11mm,2.5mm
4" x 4"	100mm x 100mm	2.0mm,2.5mm
Technical Note: 1,Standard roll length: 30m;width: 0.5m to 1.8m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request.

PVC Coated Welded Mesh
Opening		Wire Diameter
In inch	In metric unit(mm)	Wire Diameter
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21
3/4" x 3/4"	19mm x 19mm	16,17,18,19,20,21
1" x 1"	25.4mm x 25.4mm	15,16,17,18,19,20
Technical Note: 1,Standard roll length: 30m;width: 0.5m to 1.2m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request.
